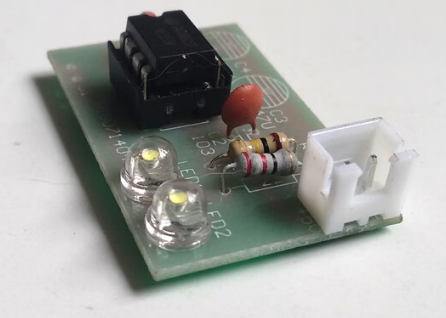

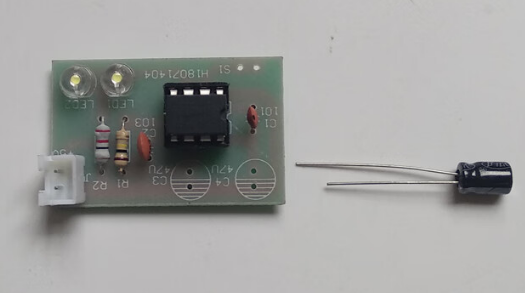

555 Safety Touch Delay Switch Test Circuit Fun DIY Parts Discrete Components Welding Small Works Kit Including Battery Box High Brightness LED Beads

This is the price inquiry on Taobao in China:yuan

This circuit is an application of the NE555 monostable trigger. The circuit is in a passive state during normal operation, where pin 3 of the NE555 is at a low level and the LED does not light up. When the touch is stable, the circuit is triggered and enters a temporary state, with pin 3 at a high level and the LED lit up. After a period of time, the transient ends and the circuit flips to steady state, causing the LED to turn off The LED illumination time is 1.1 * R1 * C3.
