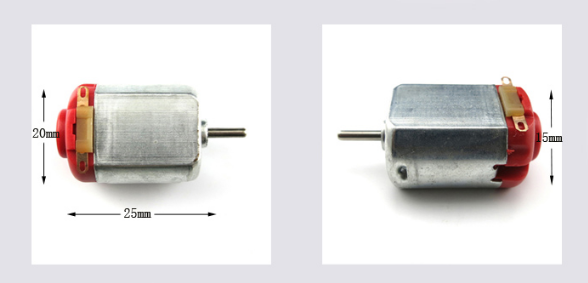

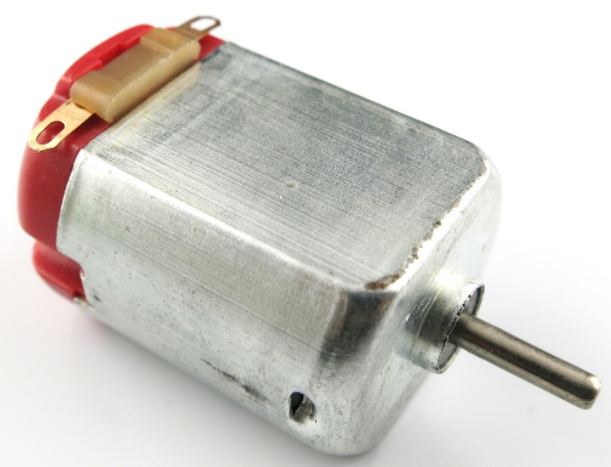

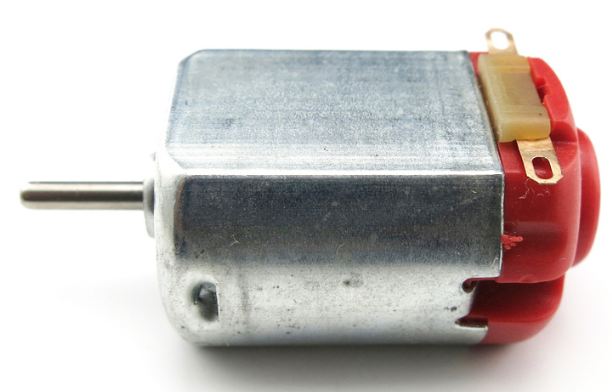

130 motor (3V22000 rpm) with red back cover, high speed, suitable for making small fans for wind turbines. The internal rotor winding is made of all copper wire.

【 Size 】 25mm height 15mm width 20mm

[Axis length] Axis diameter 2mm, axis length 7.5mm

【 Speed 】 3V speed is about 22000 revolutions per minute

[Voltage] Rated 3V power supply, no-load current of about 350ma, locked rotor current of about 1.3A

【 Weight 】 Approximately 15g (1 piece)

[130 motor (3V5500 rpm) blue back cover], low speed, this model also supports solar panel power supply (choose 3V100MA panel), and the internal rotor winding is all copper wire.

【 Size 】 25mm height 15mm width 20mm

[Shaft length] Shaft diameter 2mm, shaft length 8mm

[Speed] 3V speed is about 5500 revolutions per minute

[Voltage] Rated 3V power supply, no-load current of about 40ma, locked rotor current of about 250ma

【 Weight 】 Approximately 15g (1 piece)

130 motor (4.5V18000 rpm) black back cover

【 Size 】 25mm height 15mm width 20mm

[Axis length] Axis diameter 2mm, axis length 7.5mm

[Speed] 4.5V speed, approximately 18000 revolutions per minute

[Voltage] Rated 4.5V power supply

【 Weight 】 Approximately 13.3g (1 piece)

130 motor (3.7V 13600 rpm)

[Size] Length 2.5 * Thickness 1.5 * Width 2 centimeters. The measured length does not include the tail protrusion.

[Axis length] Axis diameter 2mm, axis length 10.5mm (including steps)

[Speed] 3.7V speed, approximately 13600 revolutions per minute

[Voltage] Rated 3.7V power supply

130 motor (6V 14000 rpm)

【 Size 】 25mm height 15mm width 20mm

[Axis length] Axis diameter 2mm, axis length 8mm (excluding steps)

At 3V, the speed is about 7000 revolutions per minute; At 6V, the speed is about 14000 revolutions per minute

【 Voltage 】 3-6V power supply. 3V no-load current 0.06A, locked rotor current 0.4A; 6V no-load current 0.09A, locked rotor current 0.78A

130 motor (white shell) 12mm long shaft

The main body is approximately 29mm long (excluding the shaft), 20mm wide, 15mm thick, with a shaft diameter of 2mm and a shaft length of approximately 12mm (excluding steps). The carbon brush and copper wire winding have a voltage range of 3-6V, with approximately 13000 revolutions per minute at 3V and 22000 revolutions per minute at 6V. The weight is approximately 18.9 grams. Suitable for making various technology small production model toys.

130 motor (dual axis black shell)

The length is about 25mm, the height is about 15mm, the width is about 20mm, the shaft diameter is 2mm, the shaft length at both ends is about 8mm, the rated voltage is 3V, and the speed is about 11000 revolutions per minute at 3V.

Long axis 130 dual axis carbon brush motor (silver back cover)

The length is about 25mm, the height is about 15mm, the width is about 20mm, the shaft diameter is 2mm, the front end shaft length is about 17.5mm, and the rear end shaft length is about 8mm. The voltage is between 1.5V-12V, with about 3600 revolutions per minute at 6V and about 7600 revolutions per minute at 12V.
